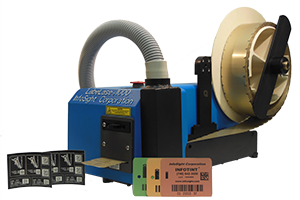

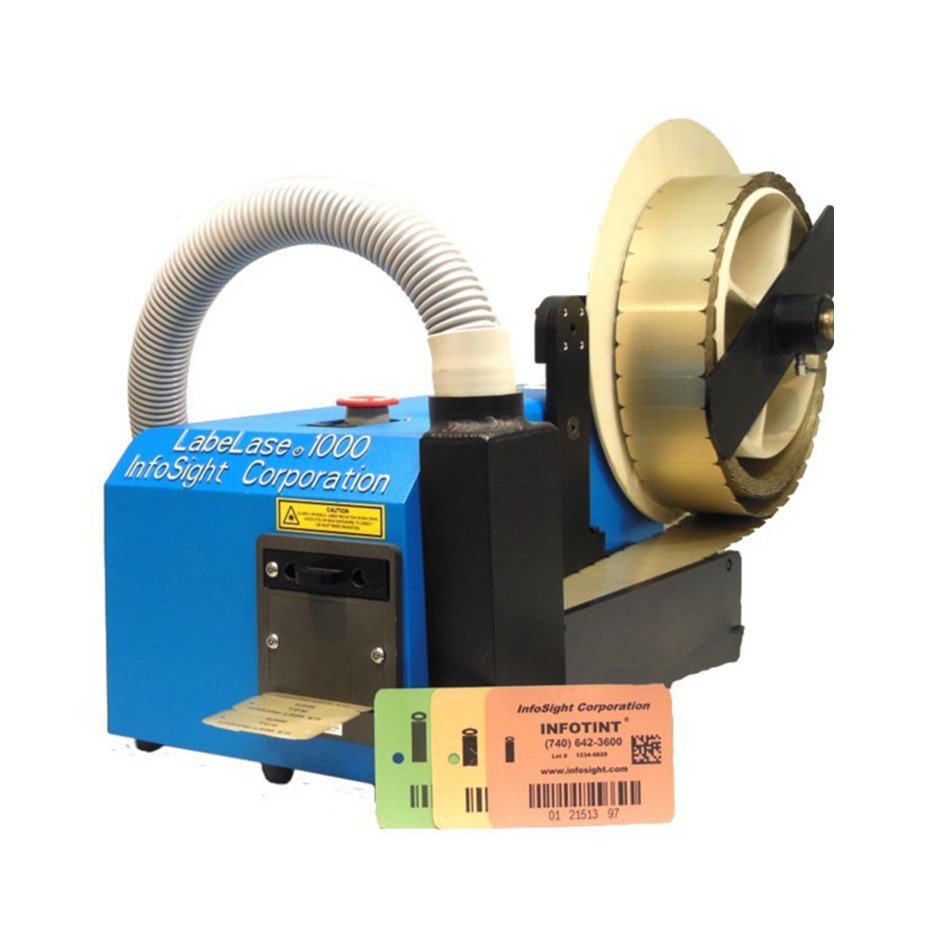

LabeLase® 1000 Vector Printer

The LabeLase 1000V Vector Tag & Label Printer is the versatile option in InfoSight's LabeLase line — the only model built to print both durable metal tags and continuous polyacrylic labels on one machine. Like the other desktop-size LabeLase printers, it fits easily into a workstation and connects directly to a PC, but its added flexibility makes it the right choice when the assets or products you're identifying span a wide variety of environments, not just one tag type.

Metal tags can be printed one at a time or off a continuous roll, using standard 300-foot (91m) rolls of tag stock, pre-nicked and notched for easy breakoff after printing. Polyacrylic label material feeds from a separate continuous roll, and the LL1000V can print and cut that material into custom shapes on demand — something the standard LabeLase 1000 can't do.

Advanced electronics and optics deliver print speed comparable to laser printers with two-and-a-half times the power, and the included free Producer™ software gives full control over tag and label design, including UID, Data Matrix, and GS1-compliant barcodes for compliance-driven applications. A fume extractor is required when printing polyacrylic labels, and an optional rewinder is available for unattended batch printing of metal tags.

  • Prints both metal tags and continuous polyacrylic labels on one machine
  • Metal tags: single or continuous roll printing
  • Polyacrylic labels: prints and cuts into custom shapes on demand
  • Compliant with U.S. Government UID specifications
  • Supports UID, Data Matrix, and GS1-compliant barcodes
  • Print speed comparable to lasers with 2.5x the power
  • Includes free Producer™ software
  • Optional rewinder for unattended batch printing (metal tags)
  • Fume extractor required for polyacrylic label printing

Spec

Detail

Materials

InfoSight metal tags with laser-markable coating, 2-layer polyacrylic label material

Metal tag feed

Single tag or continuous 300-foot (91m) roll

Label feed

Continuous roll, cut to custom shapes on demand

Connectivity (PC to printer)

RS232C serial, USB, Ethernet

Connectivity (host to PC)

InfoSight Extended Protocol, File Transfer, Ethernet

Compliance

U.S. Government UID specifications

Barcode types

Code 128, Code 39, Interleaved 2 of 5, and other common 1D/2D codes

Included software

Producer™

Required accessory

Fume extractor (for polyacrylic label printing)

Frequently Asked Questions (FAQs)

What's the difference between the LL1000V and the standard LabeLase 1000?

The LL1000V can print both metal tags and polyacrylic labels, including cutting labels into custom shapes, while the standard LabeLase 1000 handles metal tags only.

Do I need any additional equipment to print polyacrylic labels?

Yes, a fume extractor is required when printing polyacrylic labels on this machine.

Is this printer UID-compliant?

Yes, it’s compliant with U.S. Government UID specifications and supports UID, Data Matrix, and GS1-compliant barcodes.
