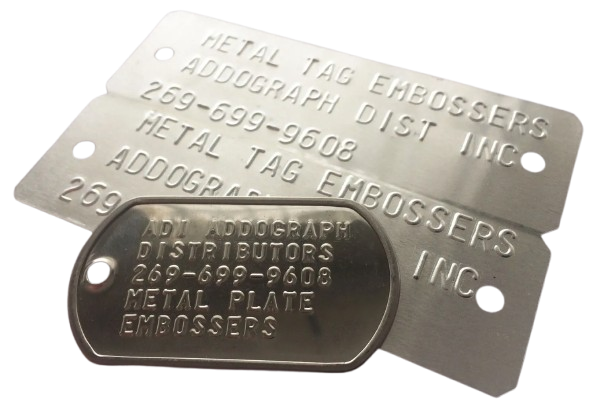

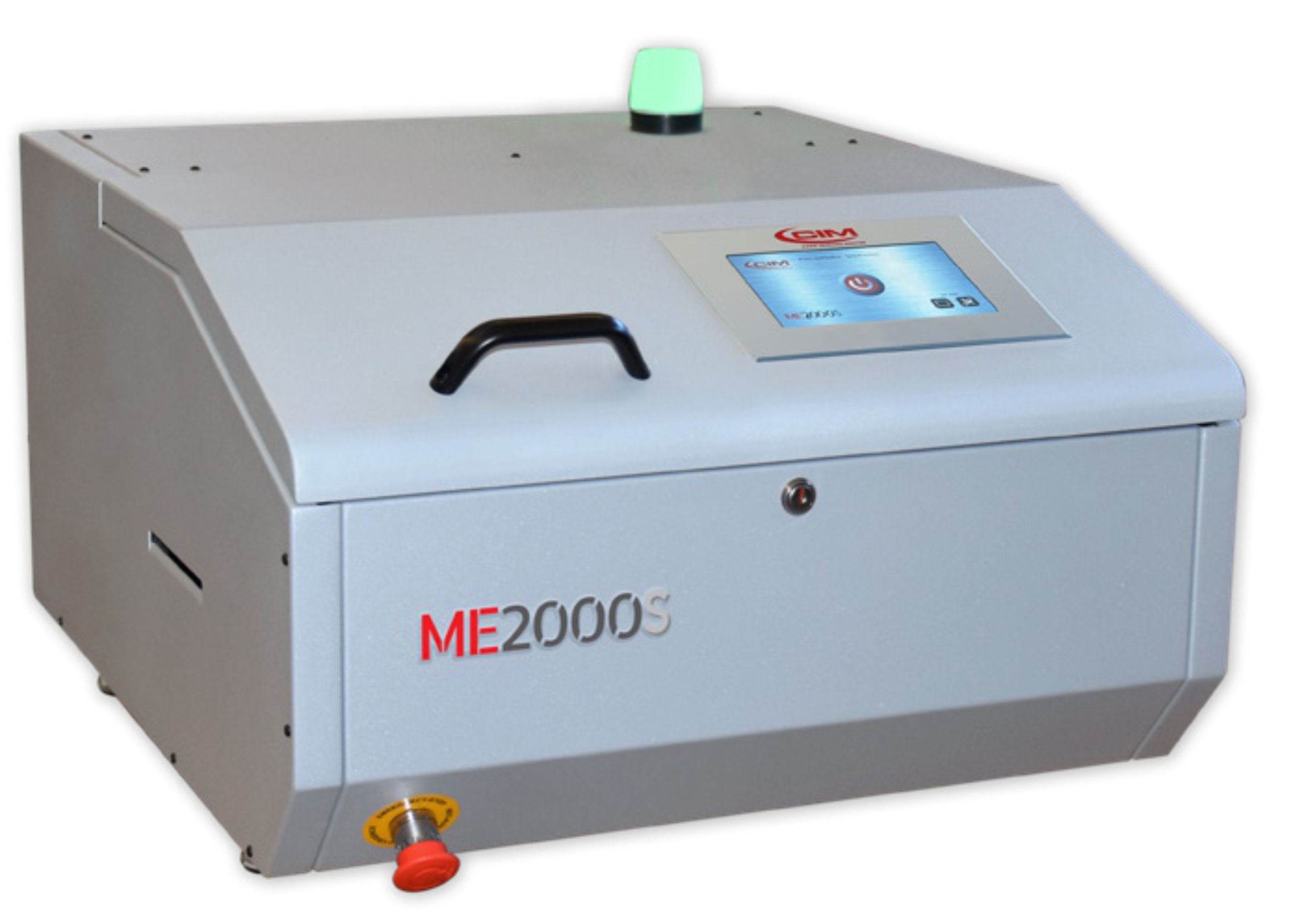

The ME2000S DM is a fully automatic electronic embosser that marks both standard alphanumeric characters and 2D Data Matrix barcodes on aluminum and steel tags in a single pass. The Data Matrix format lets a small area on the tag hold a much larger volume of scannable data than a standard barcode, useful anywhere you need dense, retrievable information on a compact tag footprint.
Where the manual-feed ME1000S DM suits lower-volume or varied jobs, the ME2000S DM's automatic feed and 200-250 plate hopper keep it running through continuous, high-volume production with minimal operator intervention — the same throughput advantage as the standard ME2000S, with barcode marking added on top.
Operation runs through a built-in 7" WVGA color touchscreen with an icon-based multi-level menu, and the ME2000S DM supports IoT remote access and management entirely over the web or via VNC. It connects via USB, Ethernet, or WiFi, with FTP-based data transfer and remote updates over Ethernet.
Spec | Detail |
Marking type | Alphanumeric + 2D Data Matrix |
Feed type | Fully automatic |
Hopper capacity | 200-250 plates |
Compatible materials | Aluminum, steel |
Display | 7″ WVGA color touchscreen |
Connectivity | USB, Ethernet, WiFi |
Remote access | Web-based or VNC |
The ME2000S DM feeds plates automatically with a 200-250 plate hopper for continuous, high-volume production, while the ME1000S DM is manual feed for lower-volume or varied jobs.
Yes, it marks standard alphanumeric characters and 2D Data Matrix barcodes on the same aluminum or steel tag.
A Data Matrix code packs a much larger volume of scannable data into a small area, useful for detailed tracking or record retrieval from a single scan.
